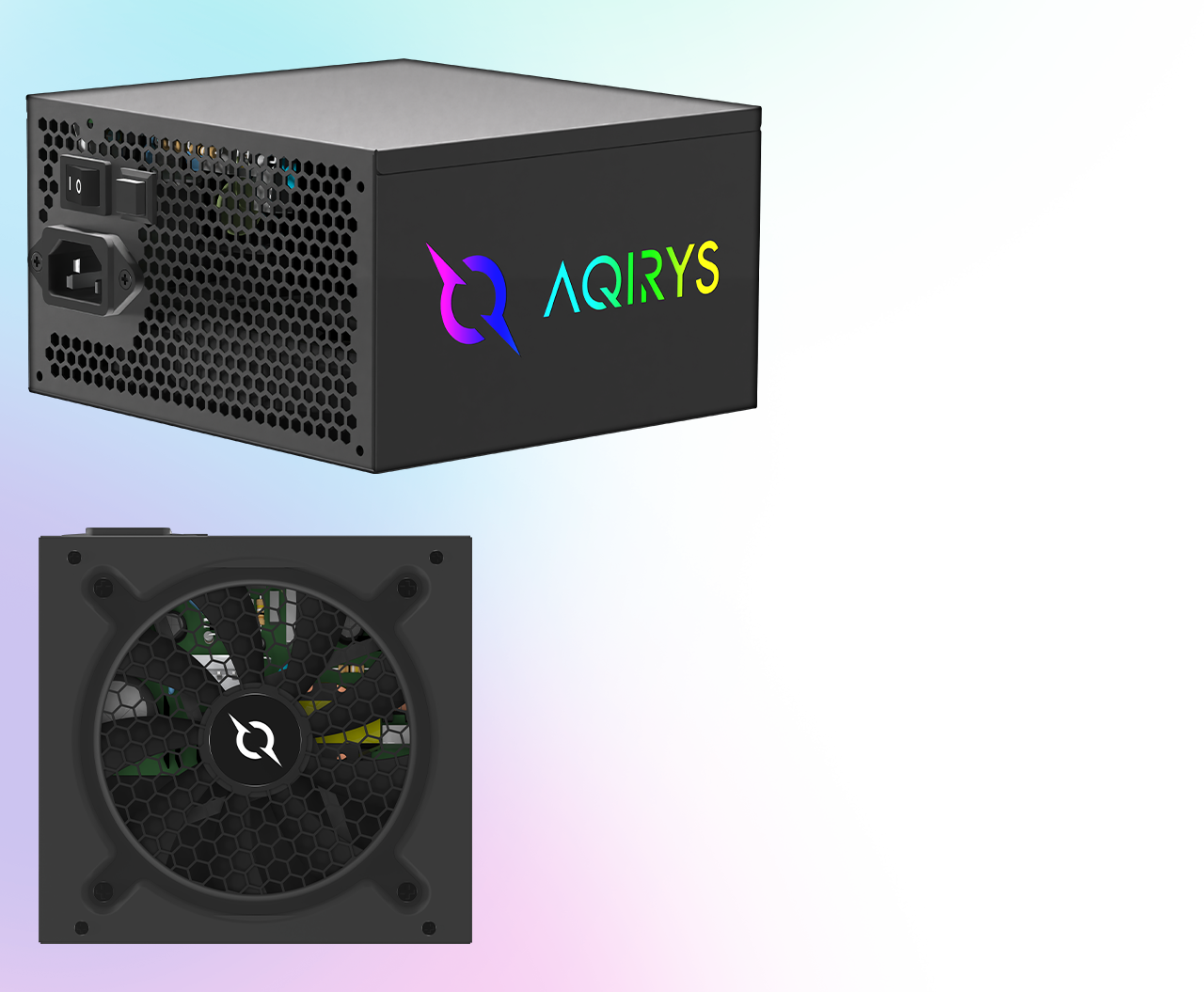

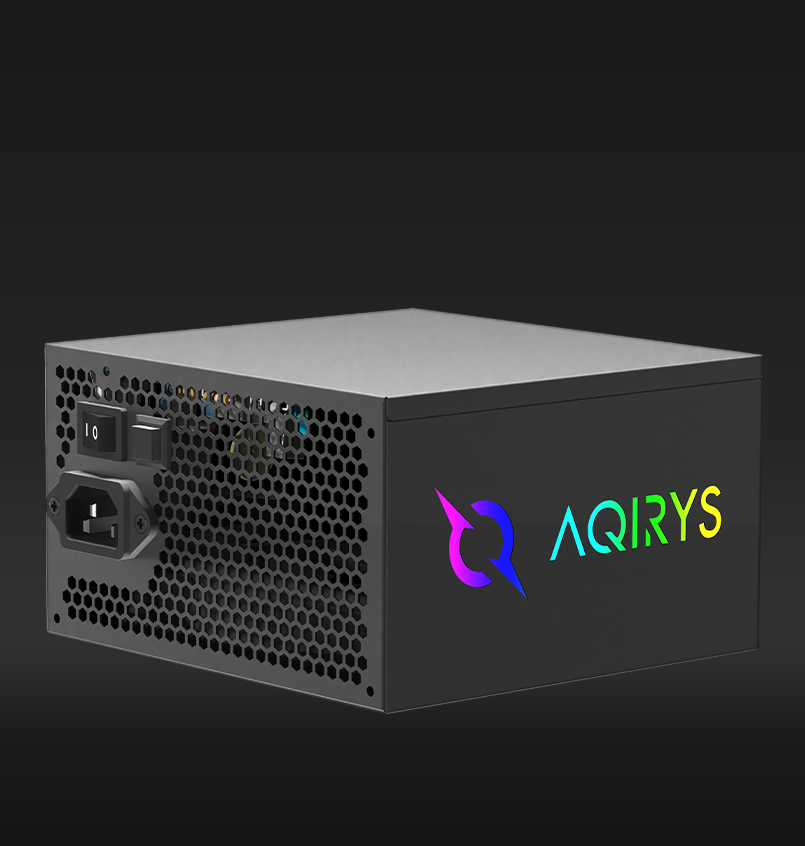

Inspired by some of the fascinating members of the cosmic community, we introduced our first energy source for your gaming universe, the PULSAR series of high-performance gaming power supplies.
The updated PULSAR series delivers 80 PLUS Bronze certified efficiency, improved safety, and outstanding electrical reliability on all models, backed up by our 6-Year Warranty.
DISCOVER PULSAR
PEACE OF MIND

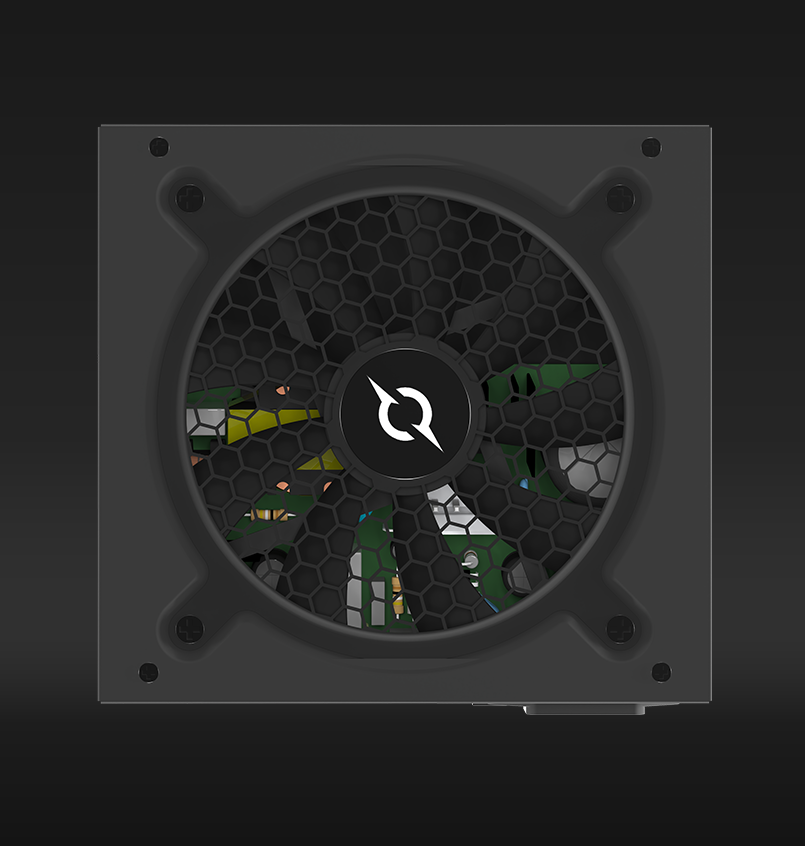

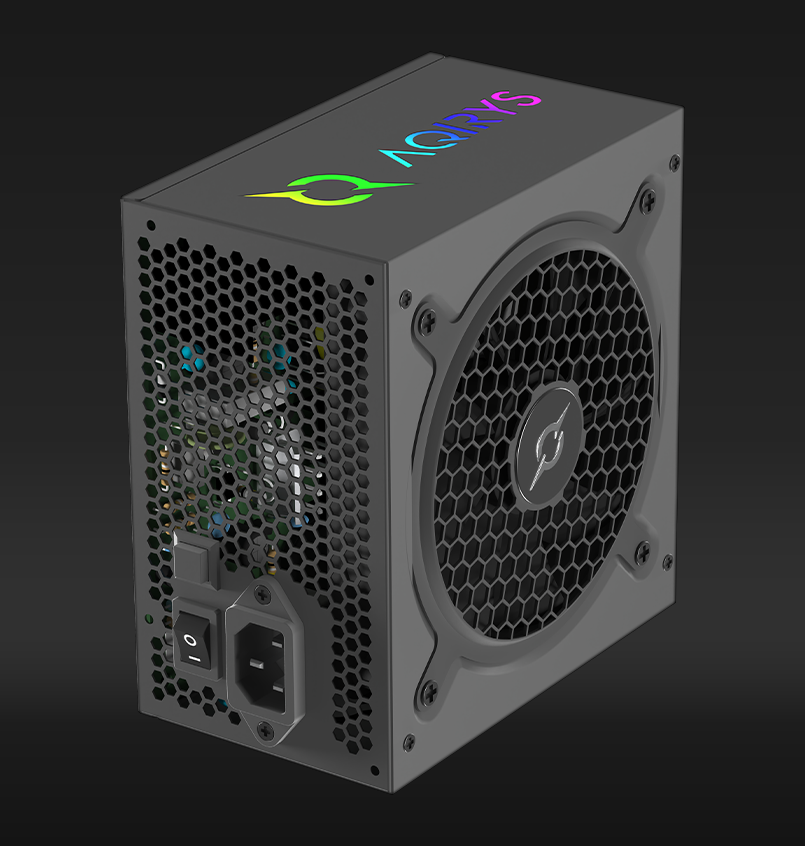

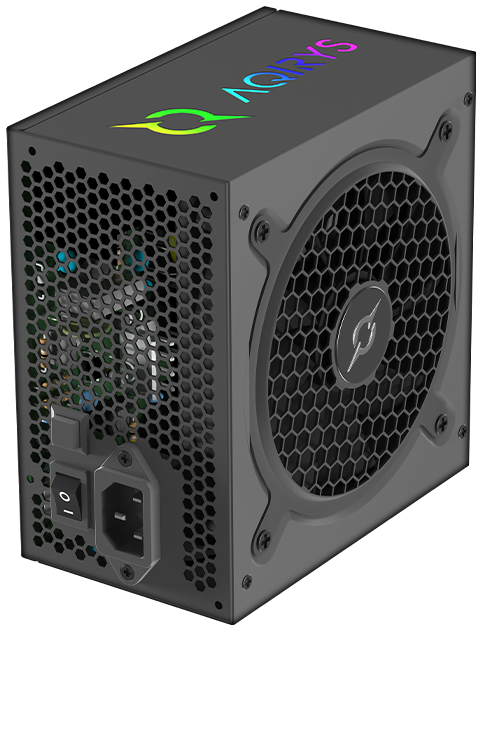

Engineered and heavily tested to the last detail, the PULSAR 550W power supply employs high-quality components and essential features like Japanese main capacitor rated for 105°C, Fluid Dynamic Bearing 120 mm fan with high-static pressure for excellent cooling, temperature-controlled fan speed for quiet operation, and Active Power Factor Correction which uses electronic circuits in efficiently distributing power to devices connected to the power supply.
A full array of protections is also embedded, shielding against multiple events: Over Voltage, Under Voltage, Over Current, Over Power, Over Temperature, and Short Circuit.
AESTHETICS MATTERS

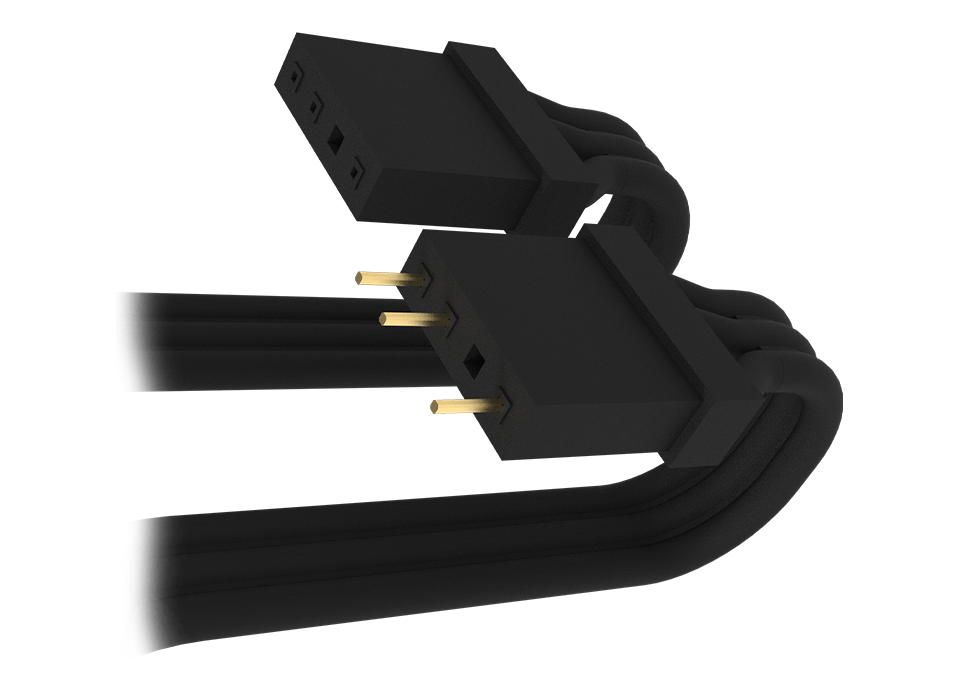

All PULSAR models use ribbon-type fixed black cables to warrant better cable management. This heightens the build aesthetics and plays a decisive role in ensuring a non-restricted airflow inside your PC.

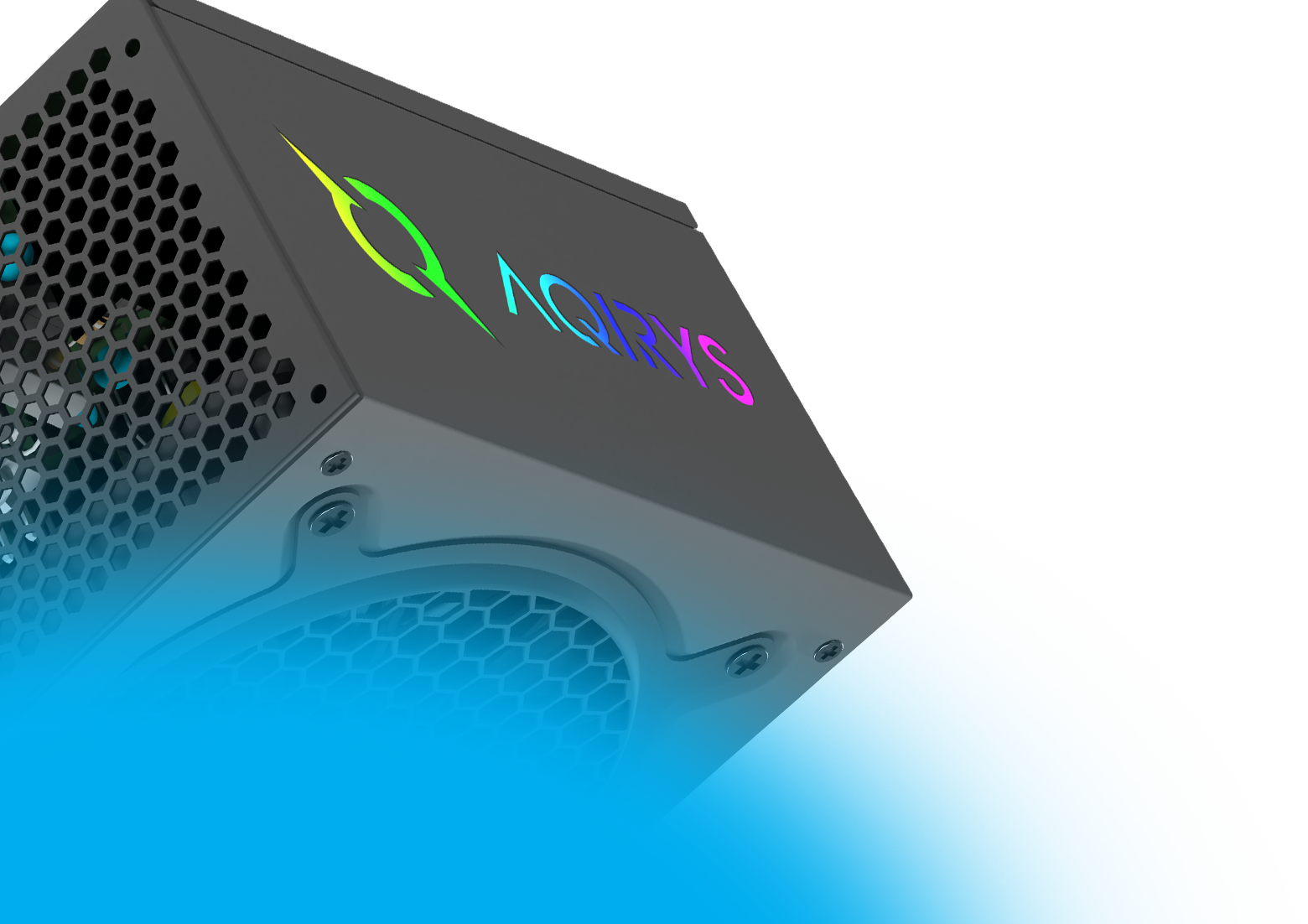

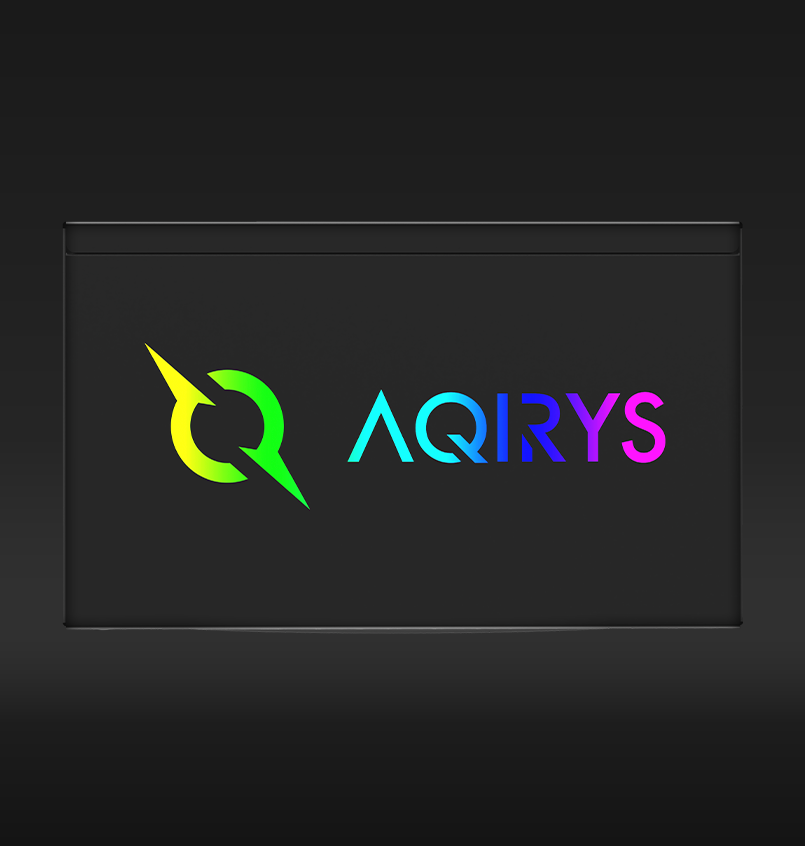

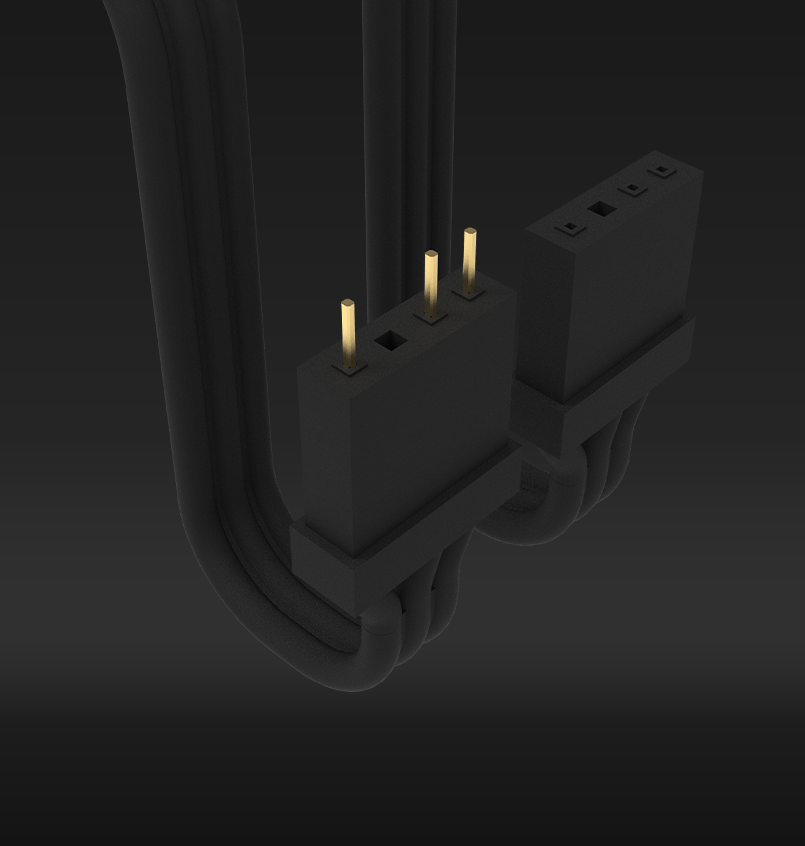

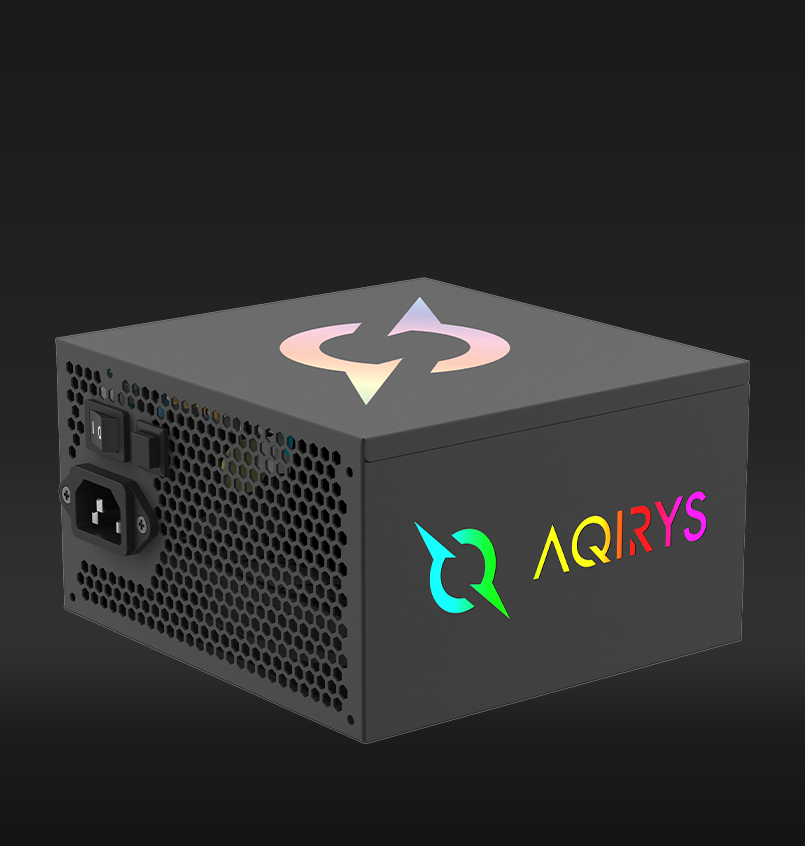

And since ARGB illumination has become ubiquitous, you can have our cool logo illuminating in-sync with the rest of your hardware by connecting the PULSAR to the ARGB header on a compatible motherboard. Or you can manually choose the lighting effects of the PULSAR using the dedicated button placed on the PSU.
FUN FACTS
From Earth, pulsars often look like flickering stars, but they aren't really stars, or at least they aren't “living” stars. They are very fast-spinning neutron stars that form when a star more massive than the sun runs out of fuel and collapses on itself. A pulsar can spin between 5000 to 40000 times per minute, and the magnetic field can be as strong as one cubic meter of it could contain more energy than has ever been generated by mankind
TECHNICAL DATA
- Continuous power: 550W
- Form factor: ATX
- ATX Version: 2.52
- Efficiency: 80PLUS® Bronze certified
- Intel® C6/C7: Yes
- PFC: Active
- Illumination: Yes (ARGB)
- Modular cables: No
- Cable type: Flat, black
- Fan size: 120 mm
- Fan speed: Temperature controlled
- Fan technology: Fluid Dynamic Bearing

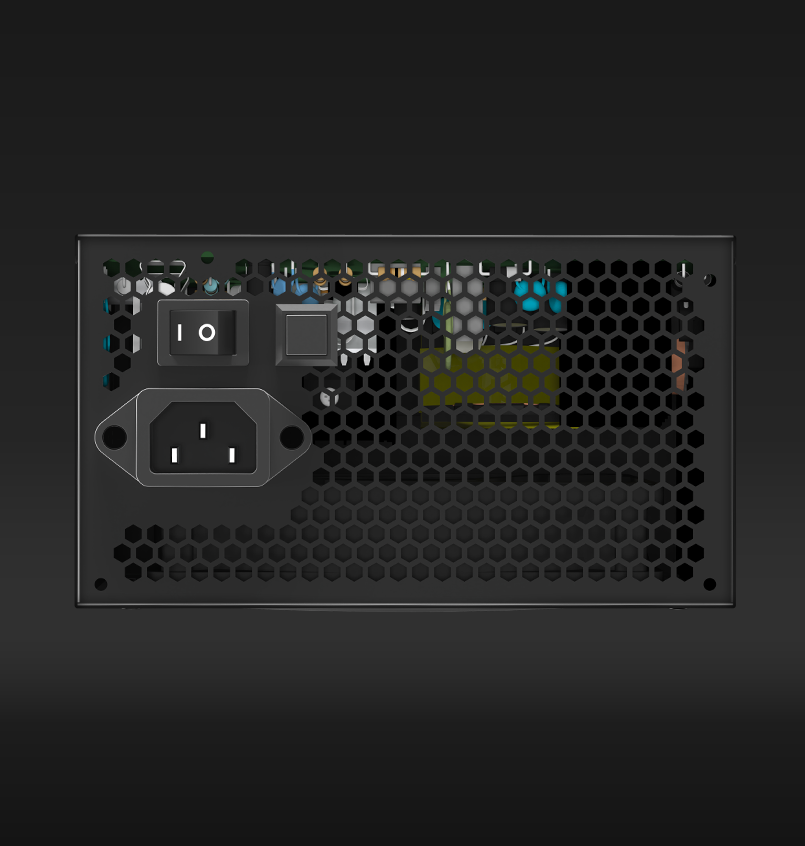

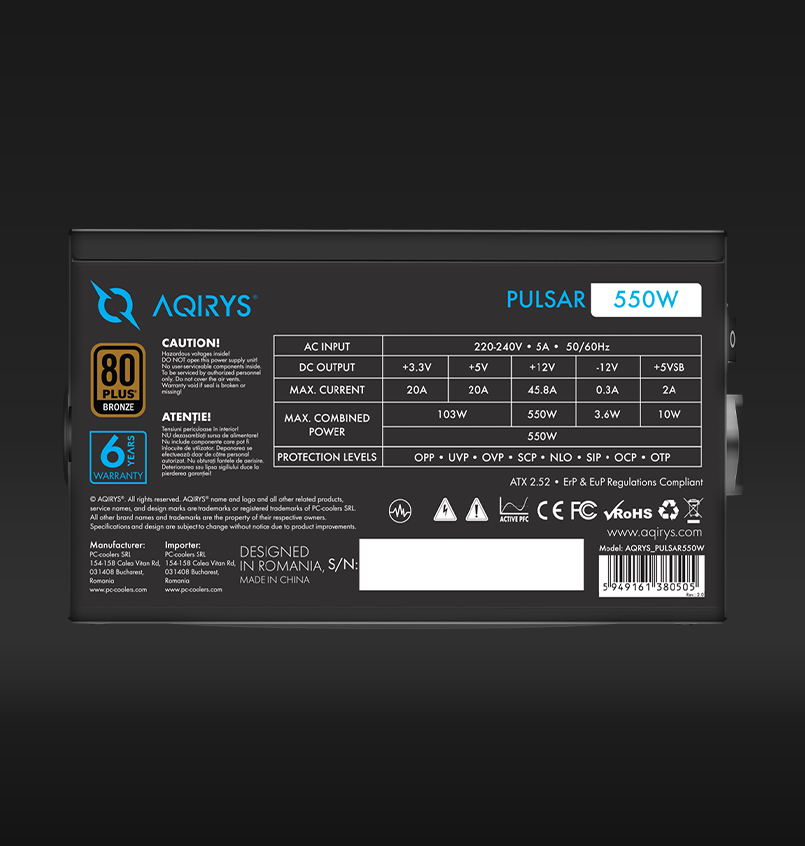

- AC Input: 200 - 240V, 4A, 50/60Hz
- DC Output +3.3V: 20A
- DC Output +5V: 20A
- DC Output +12V1: 45.8A
- DC Output -12V: 0.3A
- DC Output +5Vsb: 2A

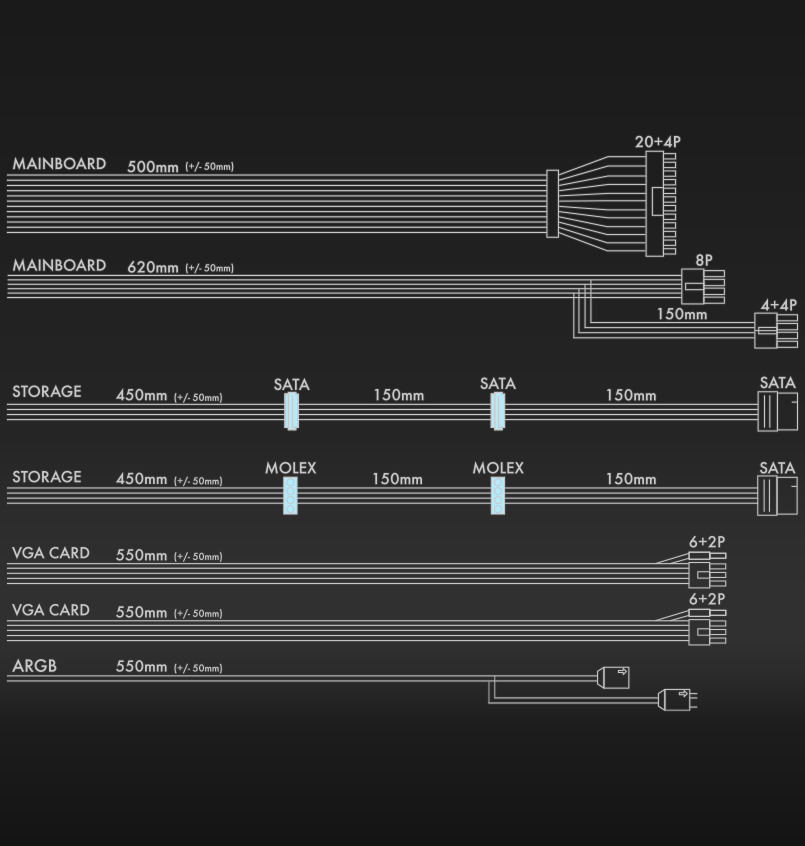

- MB connector: 1x 20+4P
- CPU connector: 1x 8P, 1x 4+4P
- PCIe connector: 2x 6+2P
- SATA connector: 4x
- Molex connector: 2x 4P
- ARGB connector: 2x
- Protections: OVP, OCP, OPP, SCP, UVP, NLO, SIP, OTP
- Environmental compliance: RoHS, WEEE, ErP Lot 6
- Dimensions (LxWxH): 140 x 150 x 87 mm
- Weight: 1418 g
- Color: Black
- EAN: 5949161380505
- Warranty: 6 Years
